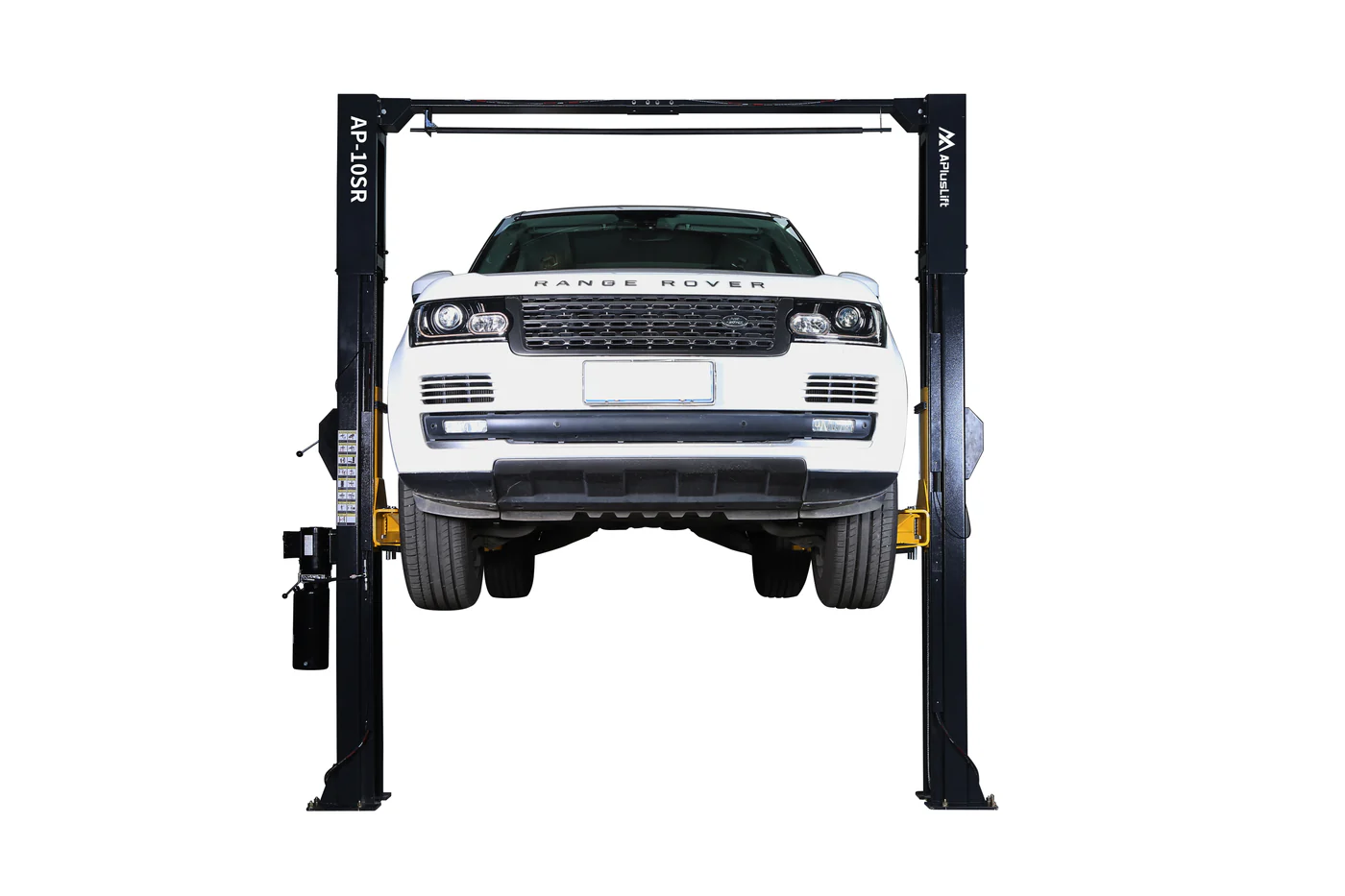

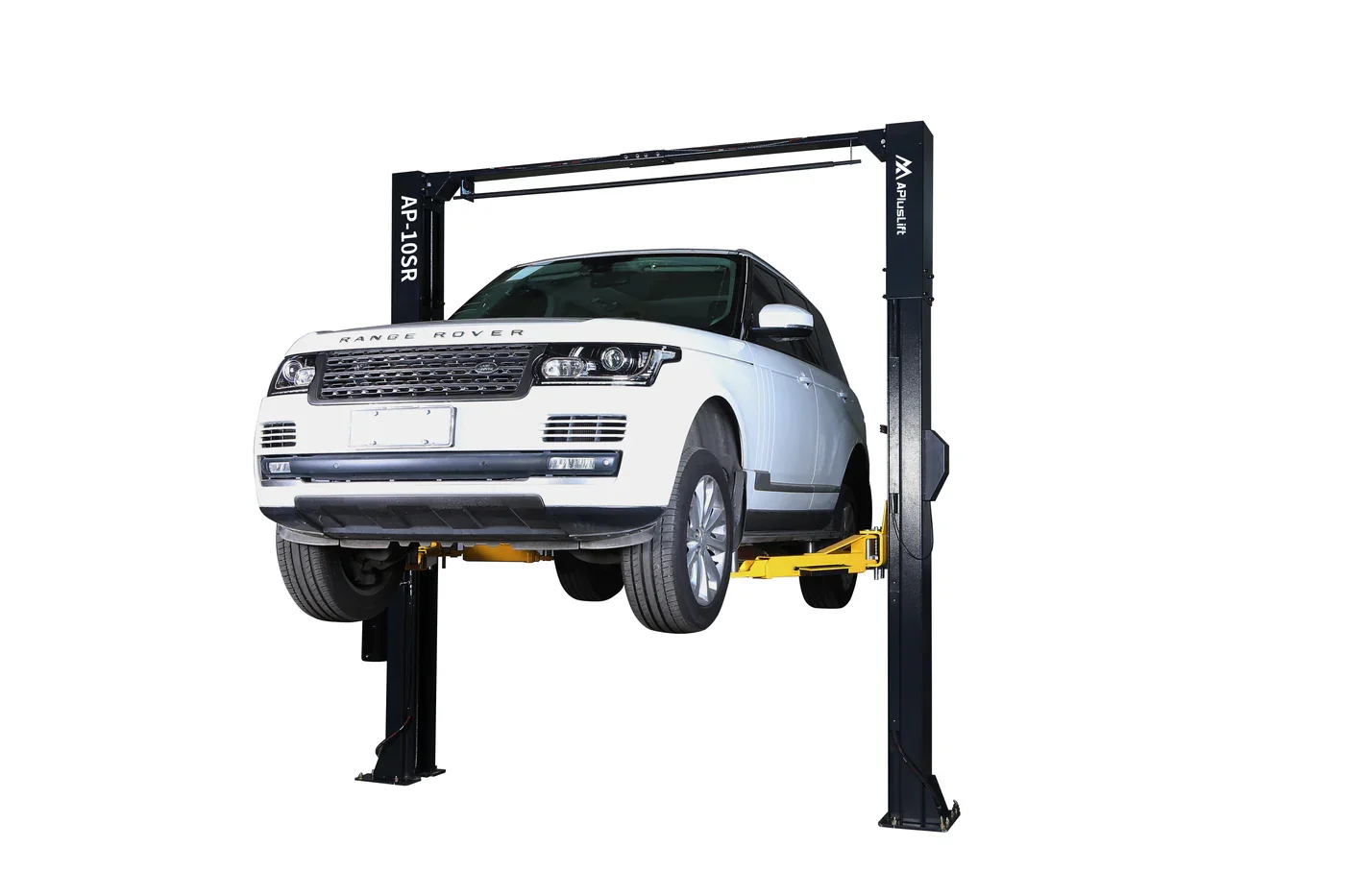

APlusLift AP-10SR 10,000 LB Two-Post Car Lift – Detailed Product Description

Industry-Leading Quality • Single-Point Safety Release • 3-Year Warranty

The APlusLift AP-10SR is a premium overhead two-post car lift designed for professional workshops, auto repair centers, and serious home mechanics seeking high performance, safety, and long-term durability. Engineered with a single-point safety lock release and a heavy-duty welded structure, this lift delivers exceptional lifting stability and ease of operation. With a 10,000 LB lifting capacity, reinforced steel construction, and CE-certified hydraulic system, the AP-10SR provides outstanding reliability at an affordable price.

Industry-Leading Durability and Safety

This model is CE certified and tested to exceed strict performance standards:

• 115% dynamic load capacity tested

• 150% static load capacity tested

• Reinforced pressure-lubricated hydraulic system

• Single-point safety lock release for quick and safe unlocking

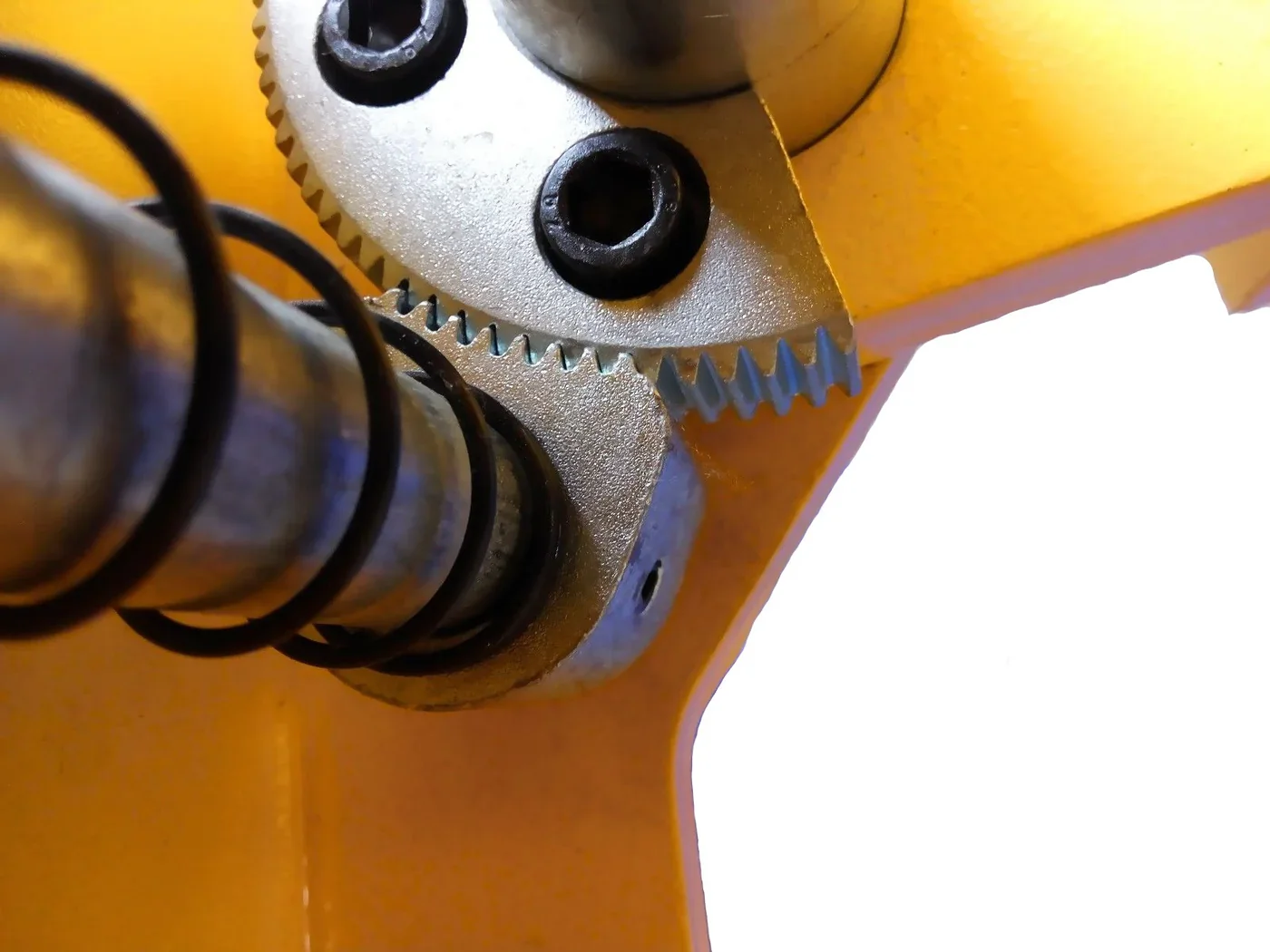

• Automatic arm lock restraints to secure the vehicle at any height

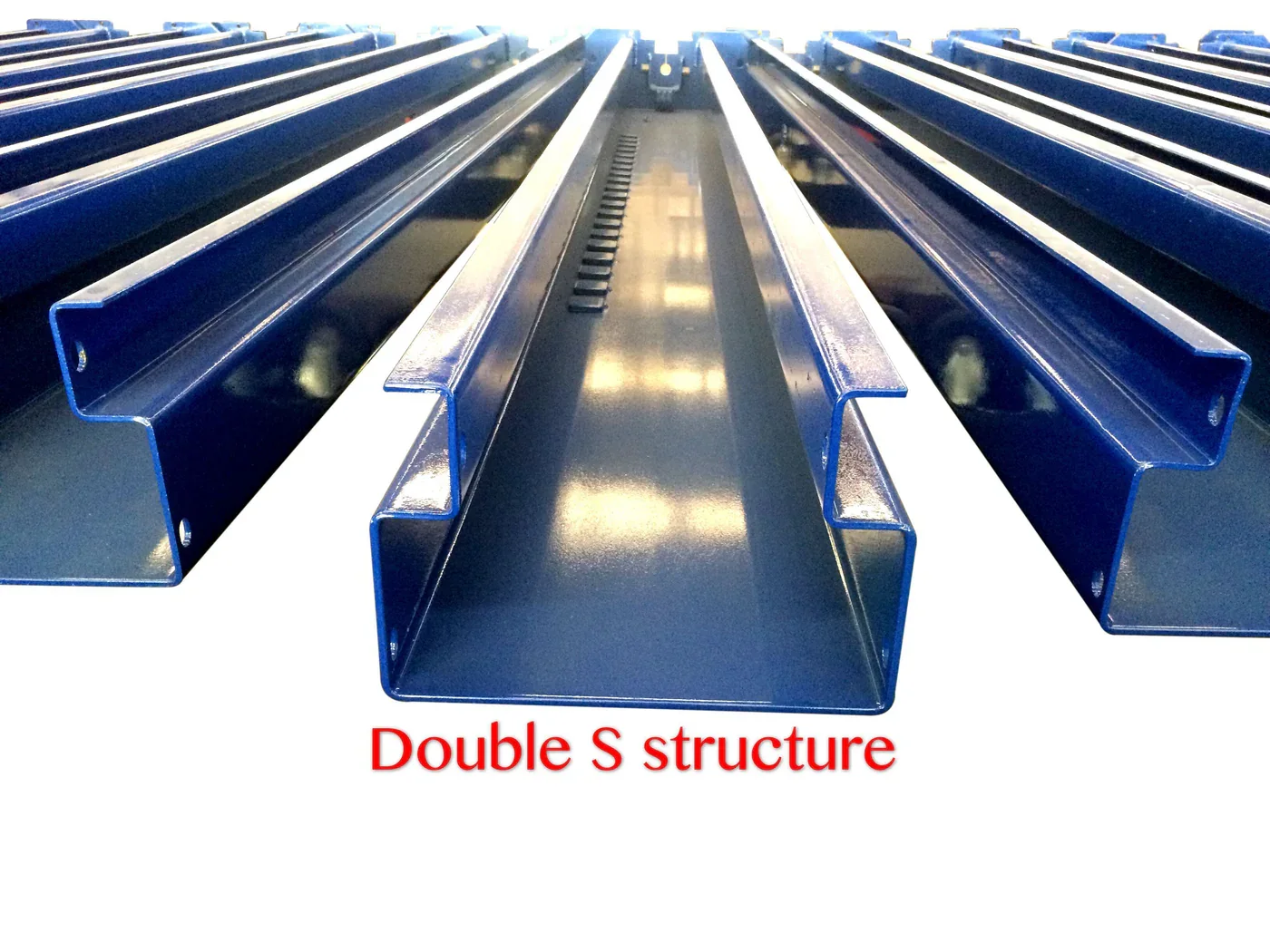

The AP-10SR features a robust double “S” column design, maximizing strength and structural rigidity to support heavy vehicles safely and efficiently.

Premium Design and Construction

Every structural component is robot-welded and finished with a durable powder coating, ensuring long-lasting corrosion resistance and a clean professional appearance. The lift includes:

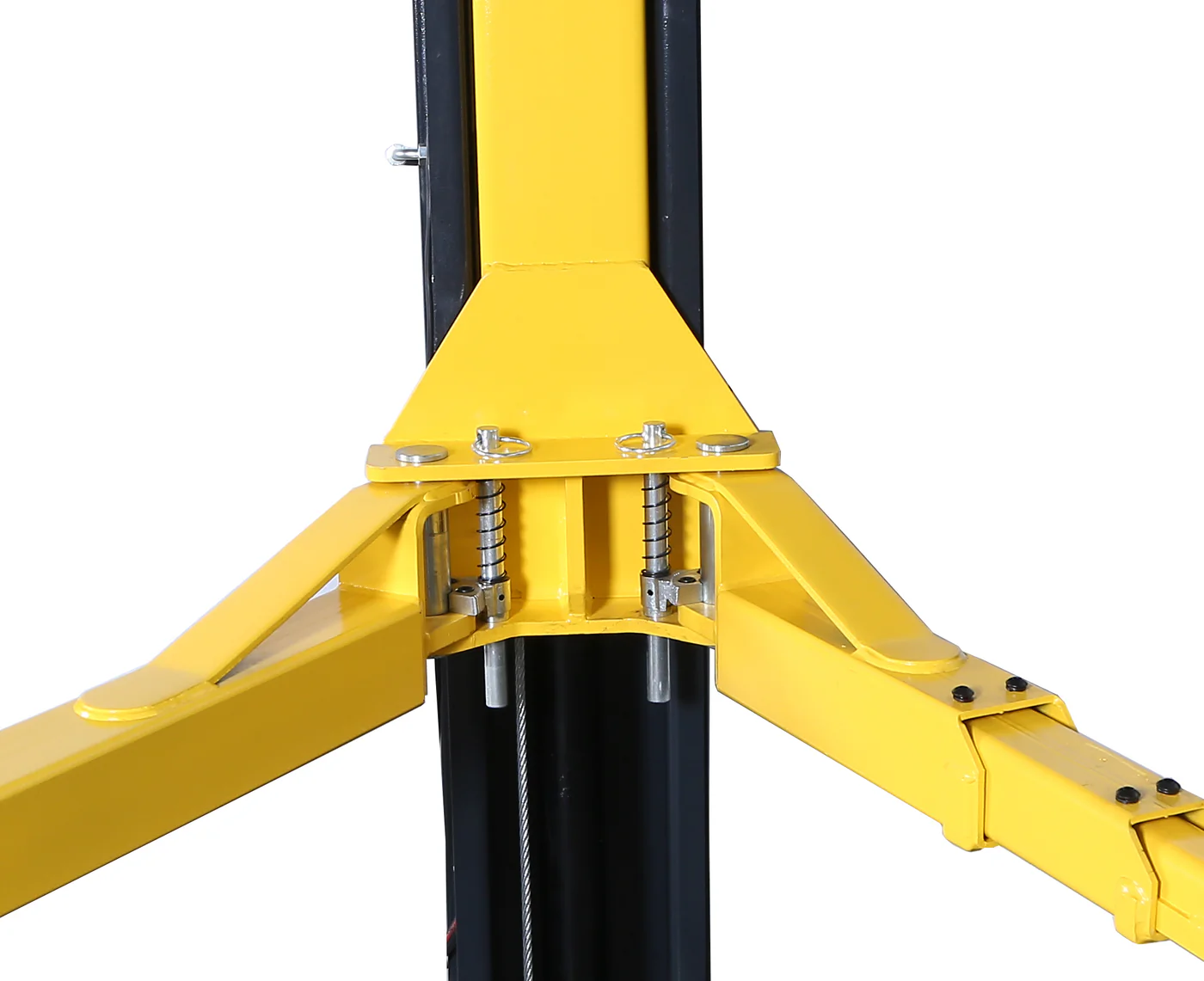

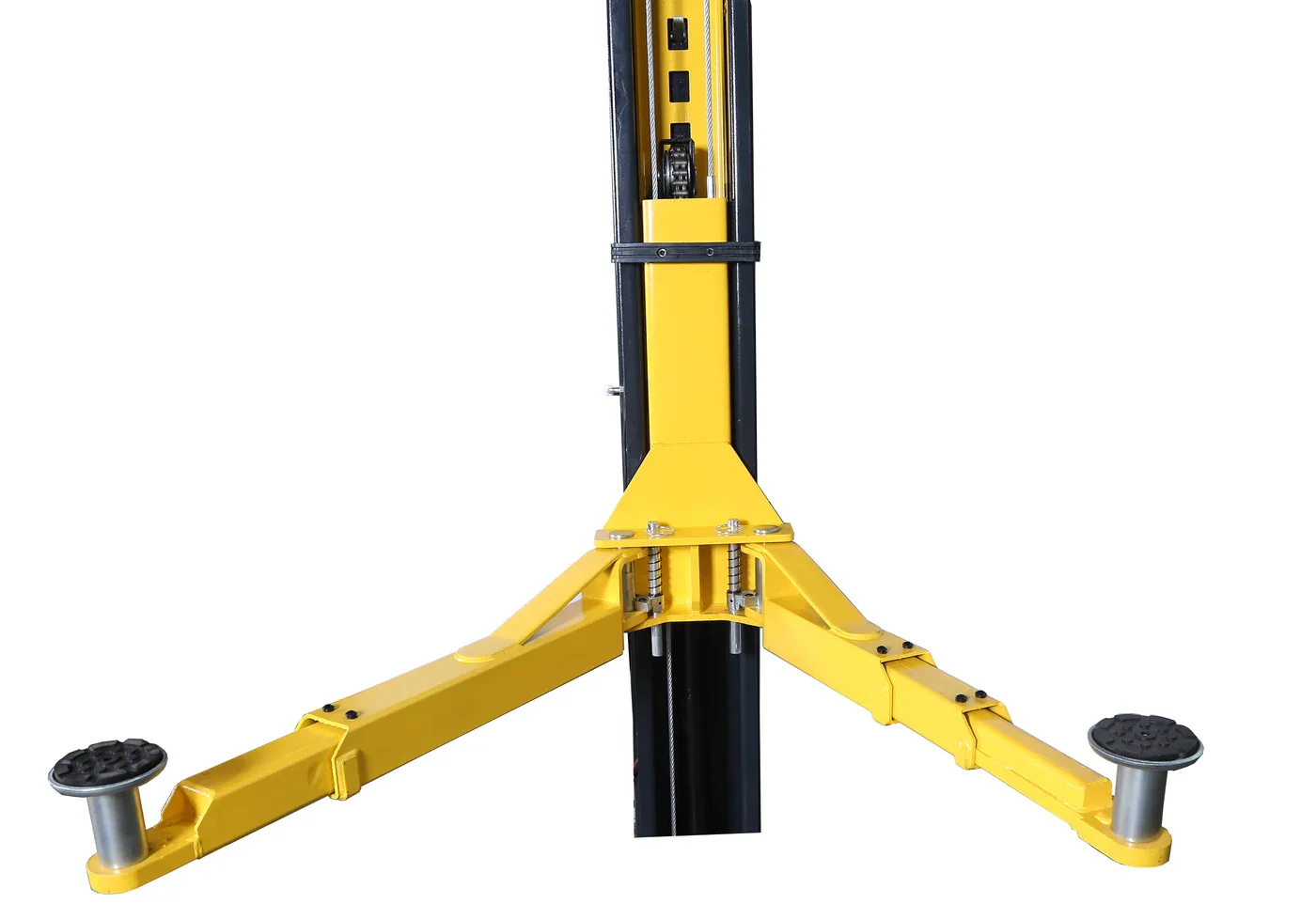

• Combo arm assembly (symmetrical and asymmetrical), suitable for a wide range of vehicles

• Adjustable screw pads for precise vehicle contact points

• 4" truck adapters, increasing lift height to a maximum of 81 inches

• Isolator pads to reduce vibration and noise

• Belt tensioner system for easy maintenance

• Up-limit safety switch to prevent cylinder overtravel

• Heavy-duty cables and pulleys to improve synchronization and extend service life

The carriage assembly uses Q355 (ASTM A572) steel, significantly stronger than standard Q235 steel, and self-lubricating nylon sliders ensure smooth vertical movement.

Easy Operation

The AP-10SR is built for both simplicity and performance:

• UP button for smooth hydraulic lifting

• Manual lowering lever for controlled descent

• Relief valve integrated in the pump to prevent overload

• Door guard rubber protectors to prevent vehicle damage

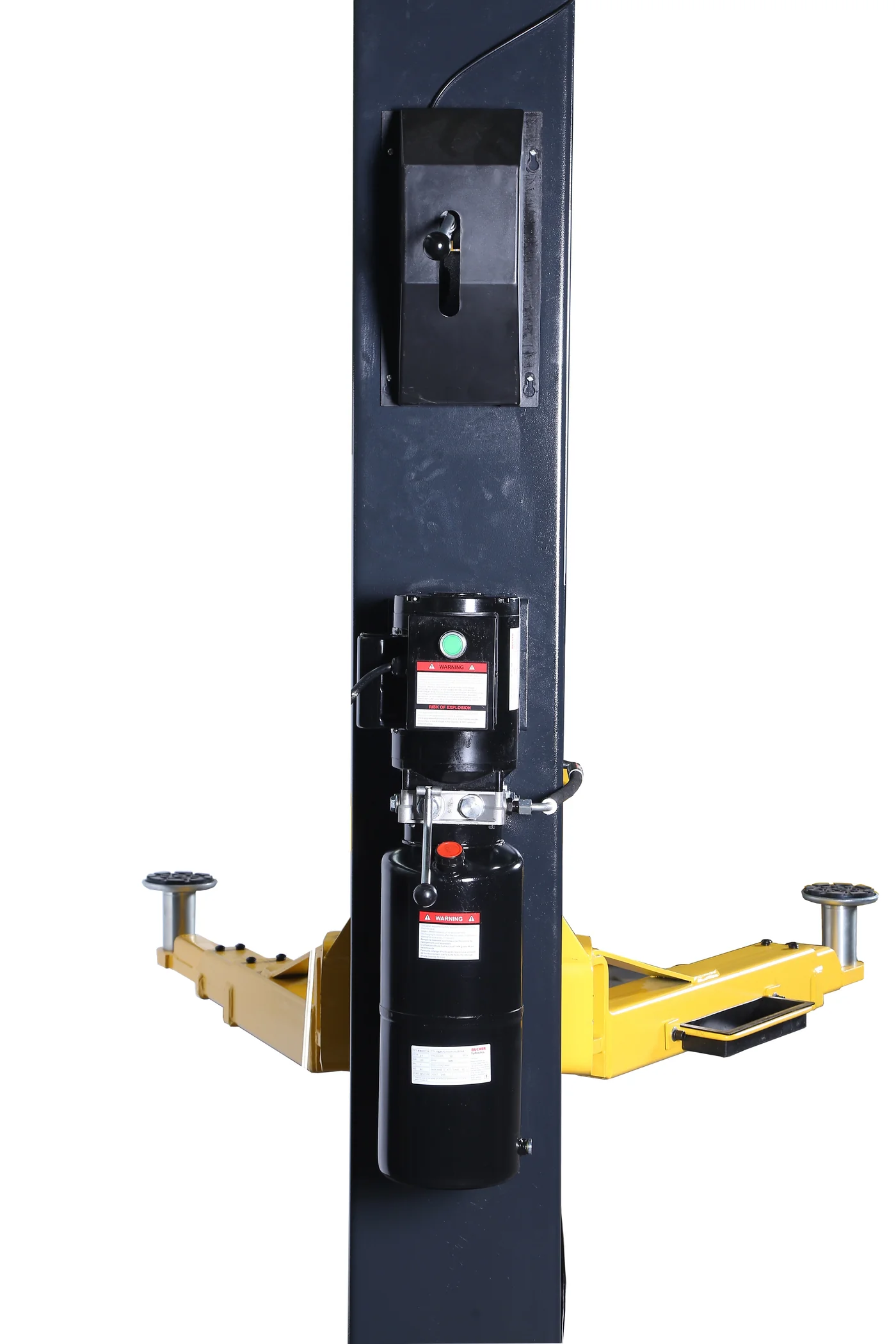

Powerful and Reliable Hydraulic System

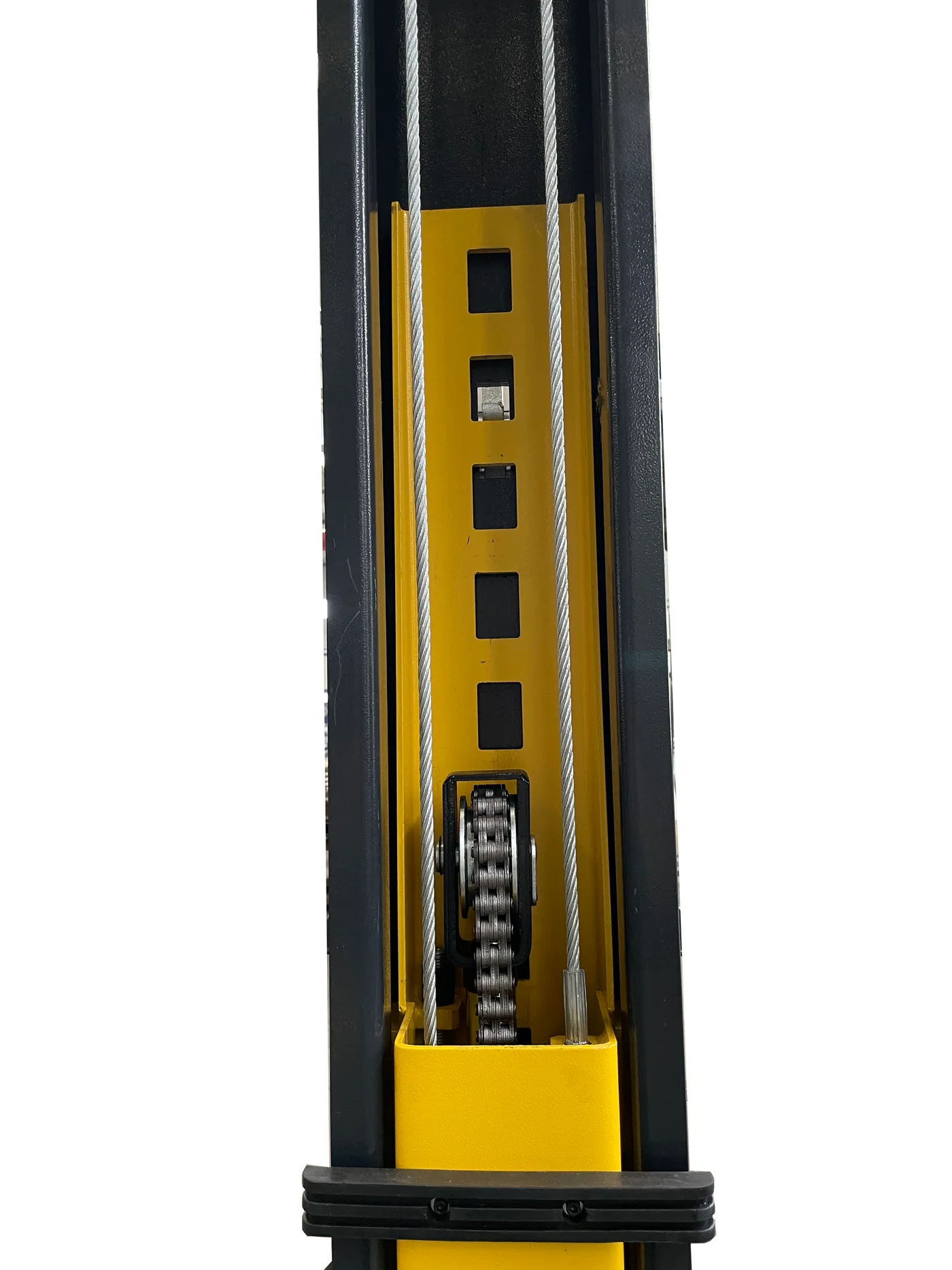

• Dual hydraulic cylinders with chain-drive system

• Durable double seal rings that protect internal PU components

• Fast lifting time of 50 seconds to full rise

Specifications

• Model: AP-10SR

• Lifting Capacity: 10,000 LB

• Style: Overhead, single-point lock release

• Overall Height: 143 3/16"

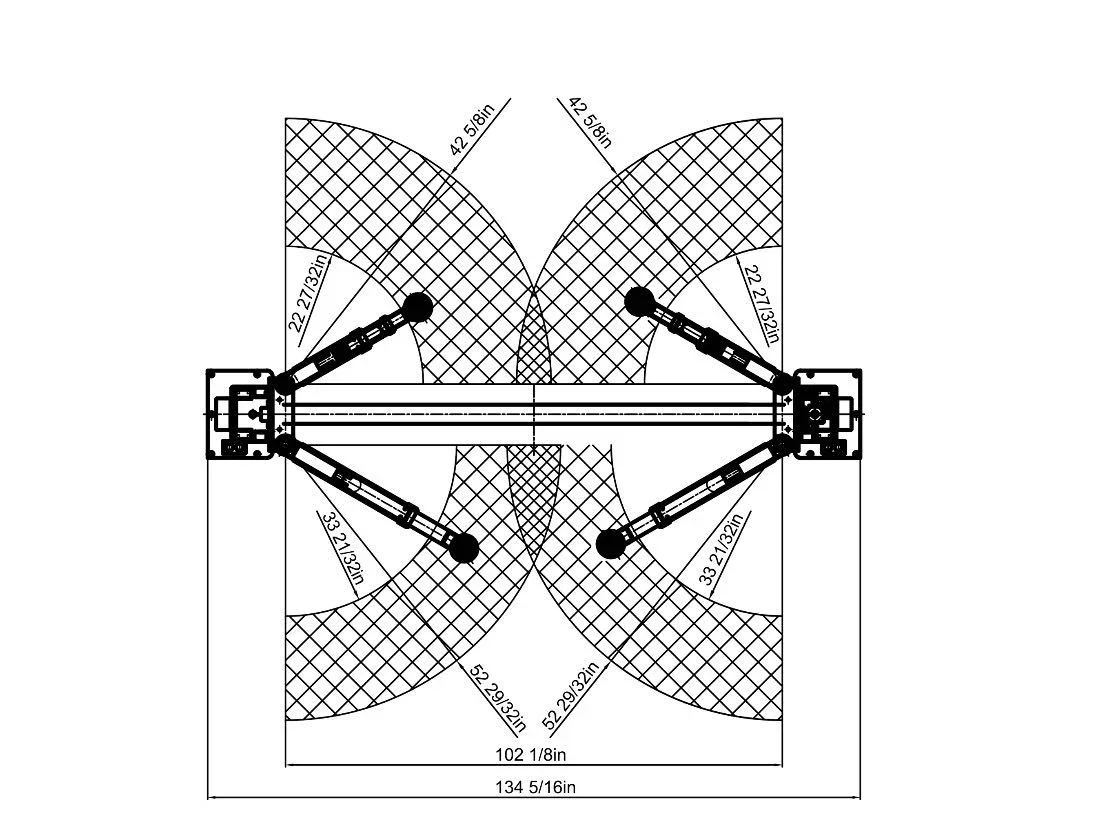

• Overall Width: 134 5/16"

• Max Lift Height (with truck adapters): 81"

• Max Lift Height (without adapters): 75"

• Pad Minimum Height: 4"

• Drive-Through Width: 100"

• Column Width: 109"

• Motor: 220V, Single Phase, 3HP, 10A (30A breaker recommended)

• Hydraulic Oil Required: 3–5 gallons AW32/AW46 (not included)

• Rise Time: 50 seconds

• Shipping Weight: 1,400 LB + 120 LB

• Concrete Requirement:

  • 6" thickness at 3500 PSI (reinforced)

  • 4" minimum for vehicles up to 9,000 LB

Included Parts

• 4 adjustable screw pads

• 4 truck adapters (4")

• 10 anchor bolts

• 10 shims

• 2 tool trays

• 2 toe guards

Optional Accessories

• 2¾" and 6" tall truck adapters

Warranty and Support

APlusLift provides an industry-leading 3-year warranty on all parts, along with full availability of replacement components and optional accessories. The company welcomes customer feedback to continually improve product quality and user experience.
